Abrasive Removal Systems

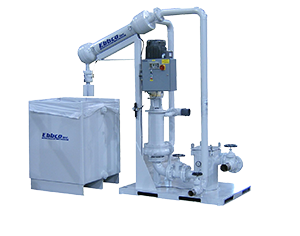

Abrasive Removal Systems continuously remove exhausted abrasive that collects in the Waterjet catch tank, eliminating the downtime for clean out maximizing production. The Abrasive Removal system can be adapted to any Waterjet table. Standard Abrasive Removal System includes a custom fit sweeper package, Automated Purge Controls and a Abrasive Hopper with Removable Liner.

Model Number	Application Sq. Ft.	Connection Size
		Inlet	Outlet
WJF-0200-B-CC	1 TO 30	3”	2"
WJF-0250-B-CC	31 TO 70	3”	3"
WJF-0303-B-CC	70 TO 100	4”	3"
WJF-0402-B-CC	101 TO 170	4”	4"
WJF-0502-B-CC	171 TO 300	6”	4"
WJF-0602-B-CC	301 TO 600	6”	4"
WJF-0802-B-CC	601 TO 800	8”	8"

Streamline Abrasive Removal Systems

Standard Abrasive Removal System without the automated controls and built in shutdowns.

Model Number	Application Sq. Ft.	Connection Size
		Inlet	Outlet
WJF-0200-CC-SL	1 TO 30	3”	2"
WJF-0250-CC-SL	31 TO 70	3”	3"
WJF-0303-CC-SL	70 TO 100	4”	3"
WJF-0402-CC-SL	101 TO 170	4”	4"

Abrasive Removal Systems with Bladder Option

standard Abrasive Removal System without the automated controls and built in shutdowns.

Model Number	Application Sq. Ft.	Connection Size
		Inlet	Outlet
WJF-0250-CC-BLADDER	31 TO 70	3”	3"
WJF-0303-CC-BLADDER	70 TO 100	4”	3"
WJF-0402-CC-BLADDER	101 TO 170	4”	4"
