Replacement Filter Cartridge

Filter Vessel #2

WJF-HR930-Q.35

Replacement Filter Cartridge

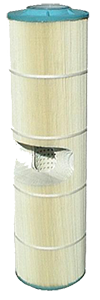

The Ebbco Hurricane Filter Cartridge is design to remove particulate down to 0.35 micron. The ebbco Hurricane Cartridge has more than 200 square foot of polyester media for execellent abrasive holding capacity. Media is distributed evenly for longer filter life and a lower pressure drop. Cartridge should be replaced when the pressure differential reaches 35 PSI or the Gauge on the Hurricane vessel reaches betweek 5-10 psi.

Specifications

Part Number	WJF-HR930-Q.35
Material	Polyester
Micron Size	0.35
Box Quantity	2 Pcs
Square footage	>200 Sq. Ft.
Outer Diameter	9-3/4"
Inner bag	3-5/8"
Average Life	Approximately 30 days or 200 hrs

Optional Micron Sizes

WJF-HR930-Q.2	0.2 Micron
