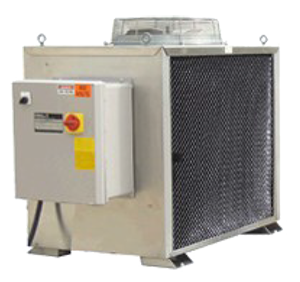

Closed Loop Chillers

The Ebbco Closed Loop Chillers are designed to cool the hydraulics on the high pressure intensifier pumps. This allows our clients to eliminate the discharge of hydraulic cooling water to drain. Each Ebbco Closed Chiller comes complete with Installation Kit and Glycol for placement up to 20' from table.

  • Conserve up to 5 GPM of Water
  • Ideal for Cooling Hydraulics
  • Digital Temperature Control
  • Easy Tank Fill Access
  • Cleanable Air Filters
Part NumberBTU RatingStandard Voltage
WJF-24000-CLC-KIT24,000230 OR 460 VAC
WJF-36000-CLC-KIT36,000460 VAC
WJF-60000-CLC-KIT60,000460 VAC
WJF-90000-CLC-KIT90,000460 VAC
WJF-120000-CLC-KIT120,000460 VAC
WJF-180000-CLC-KIT180,000460 VAC
WJF-240000-CLC-KIT240,000460 VAC


Part NumberDescription

Flow Thru Chiller

Ebbco Flow-Thru Chillers are designed to rapidly cool clean process water in a single pass prior to entry into a direct drive style high pressure pump. Chillers do not have pumps, and operate on the pressure of the process water. (not to exceed 150 psi)

  • Increase seal life with cold water
  • Ideal for Direct Drive Pumps
  • Designed for Single Pass Cutting Water Cooling
Part NumberBTU RatingStandard Voltage
WJF-12000-FTC12,000230 OR 460 VAC
WJF-24000-FTC24,000460 VAC
WJF-36000-FTC36,000460 VAC
