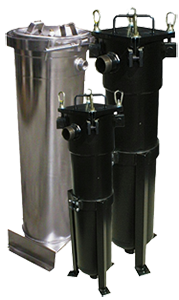

Bag Filter Vessel
Ebbco Bag Filter Vessels provide an economical answer to a wide range of process liquids. The standard filter housing is manufactured from carbon steel; optional stainless steel is available for added corrosion resistance. Incoming flow may be steady, variable, or intermittent. A standard or extended area stainless steel internal basket accommodates your choice of filter bags.
| Model No | Recom Flow Rate | Filter Bag Size | Qty of Bags | Connection Sizes |
| Bag Filter Housings- Carbon Steel |
| BFH-0916-B | 50 | P1S | 1 | 2" FPT |
| BFH-0933-B | 100 | P2S | 1 | 2" FPT |
| BFH-1833-B | 300 | P2S | 3 | 4" FLNG |
| BFH-2233-B | 400 | P2S | 4 | 4" FLNG |
| BFH-2433-B | 600 | P2S | 6 | 6" FLNG |
| Slim-line Band Clamp Housings-Stainless Steel |
| SLBV-0824-BC | 90 | P1S | 1 | 1" FPT |
| SLBV-0833-BC-.75 | 200 | P2S | 1 | 3/4" FPT |
| SLBV-0833-BC-2 | 200 | P2S | 1 | 2" FPT |
Extended Area Filter Baskets
The Ebbco Extended Area Basket is design to increase filter life by adding three sq.ft. of surface area over standard baskets. These baskets are designed to be retrofitted to almost any existing bag vessels with no modifications necessary. Baskets are constructed of stainless steel and include a bag installation tool. Replacement bags are available in various micron sizes.
