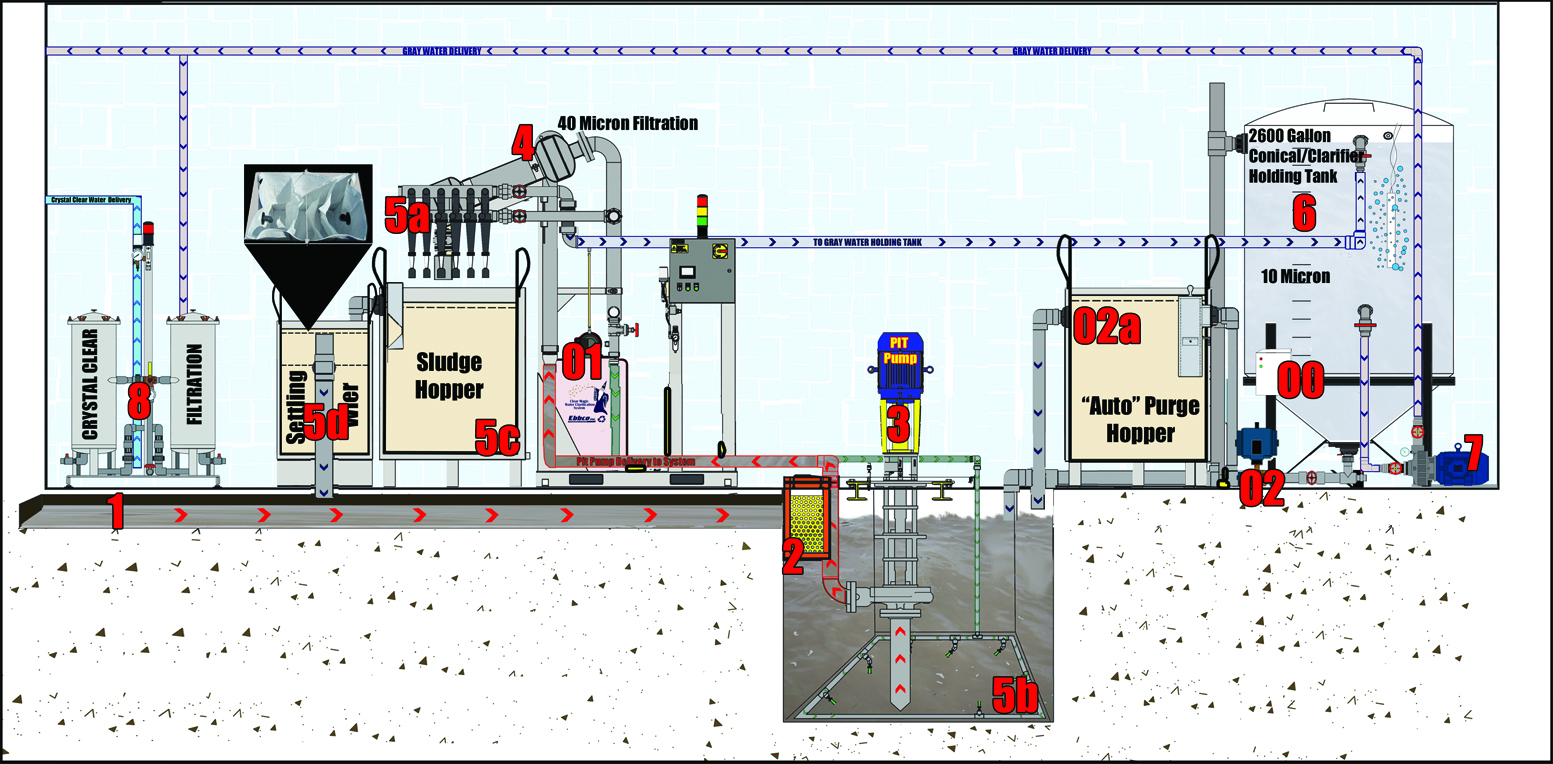

Complete Shop Filtration


1

Trench/Flume Sweeper Package

Dirty Water enters the Floor Flumes and gravity flows into the pit,. As option, if water flow is available, flumes can be lined with a series of PVC and Eductors to keep debris from settling in the flumes and pushed toward the pit.
2

"Lobster Pot"

Dirty Water enters the Floor Flumes and gravity flows into the pit,. As option, if water flow is available, flumes can be lined with a series of PVC and Eductors to keep debris from settling in the flumes and pushed toward the pit.
3

Pit Pump

The Pit Pump is mounted either on Heavy Duty I beams. This pump delivers water to the Cyclone Filtration System.
4

Cyclone Filtration System

Water from the pit first enters a centrifugal separator where solids are filtered to a 40 micron. Larger Solids are collected into a Hopper Bag (5c). Clean Fluid then sent in two directions, the Pit Sweeper Package (5b) and the Hydrocyclones (5a). Optional: Sidewinder Filtration System
5a

Hydrocyclones

A Portion of the clean water from the LAKOS Separator enters into a series of Hydrocyclones where the water is filtered further down to approximate 10 micron, Solids are purged into the Hopper Bag (5c) and clean Fluid is sent to the Holding Tank. (7)
5b

Pit Sweeper Package

A custom fit PVC sweeper package lines the floor for the pit to keep particles suspended and pushed toward pump suction for removal.
5c

Sludge Hopper

Sludge Hopper with Removable Bag with four lifting straps, Collects the sludge collected from the Separator and Hydrocyclones.
5c

Settling Weir

An Over-Under settling weir system with removable bag captures overflow from the Sludge Hopper and further removes fine solids before returning overflow water to the pit through the floor flume.
6

Conical/Clarifier Holding Tank

A 2600 Gallon Conical Tank stores the 10 micron or below gray water and automatically settles out the fluff into the cone bottom ( This process can be enhanced by adding the “Wizard” Coagulant System (O1).) The tank can be manually blown down or an optional “Auto Blow Down” (02) valve can be added.
7

Gray Water Delivery Pump

A Heavy-Duty Horizontal Pump will deliver gray water from the Holding Tank to the process at the required flow and pressure required by the process.
8

Hurricane Polishing Filter

For applications that require “Crystal Clear Water” a Hurricane Polishing Unit can be added at point of use to filter the water down to 1 micron.

System Options

O0

Ozone Generator

An Ozone Generator is mounted to the frame of the Holding Tank with an ozone dispersion stone is suspended inside. Ozone will eliminate bacteria, algae and odor from forming.
O1

“Wizard” Coagulant System

A Horizontal Pump Mounted to the Cyclone Filter Unit delivers gray water to the process as required.
O2

Auto Purge Option

An Automatic Ball Valve is incorporated to automatically remove the settled out fluff from the holding tank every two hours.
O2a

Auto Purge Hopper

An Additional Sludge Hopper is provided with the Auto Purge Option to collect the fluff, water flows through an engineered diffuser when entering the hopper.
