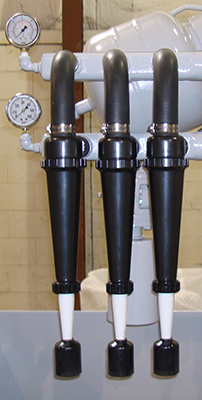

Hydrocyclones

Hydrocyclones

Part Number	Description
SWF‐606‐001	Complete Hydrocyclone Assembly
SWF‐200‐002	Hydrocyclone Hose Clamps
SWF‐274‐125	Cyclone 90° Outlet Hose
SWF‐282‐125	Cyclone Inlet Hose
SWF‐601‐007	Hydrocyclone Upper Nozzle
SWF‐957‐003	Hydrocyclone2.5” O‐Ring
SWF‐602‐001	Hydrocyclone Body Casing
SWF‐957‐002	Hydrocyclone 1” O‐Ring
SWF‐603‐001	Hydrocyclone Cap Nut—#53
SWF‐604‐001	Hydrocyclone Ceramic Lower Nozzle
SWF‐605‐001	Hydrocyclone Diffuser
SWF‐HYRDO‐SOCK	Replacement Sock for Hydrocyclone Diffuser
