SludgeMaster Hydro Series

SludgeMaster Hydro Series

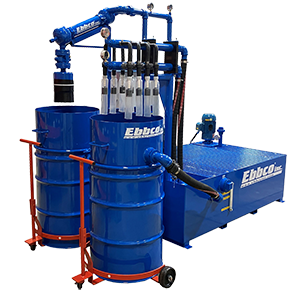

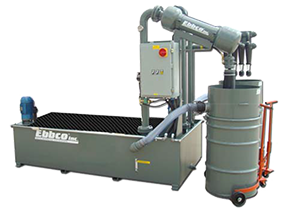

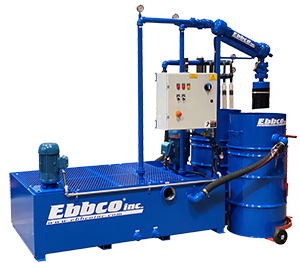

The Sludgemaster Hydro Media Free Filtration Systems are designed to prevent sludge contamination and extends coolant life indefinitely. Prepackaged, compact and easy to install, Sludgemasters Systems can be specified for one or more grinders without cumbersome piping, costly installation or excessive downtime.

Sludgemaster Filtration Systems with Hydrocyclones utilize a Centrifugal Separator to filter coolants down to 30 Micron an Automatic timed purge placed sludge into a 55 gallon sludge receiver or optional Self Dumping hopper. The Hydrocyclones then continue to polish coolant down to 10 micron continuously purging solids into a Sludge Receiver. Preventing contaminants from accumulating throughout the machine tool extends the coolant life indefinitely, eliminates rolled media and reduces disposal costs.

Systems are custom sized per application and include a self‐cleaning separate clean/dirty tank, Heavy‐duty Filter Pump, Centrifugal Separator, Hydrocyclone Separators, Dual Sludge Receivers .

10 Micron Filtration

Model NumberFlush Rate
(GPM)
Tank Capacity (Gallons)Hydrocyclone Quantity
SMF‐7030-HYDRO301502
SMF‐9040-HYDRO402704
SMF‐1350-HYDRO503704
SMF‐2090-HYDRO905006

System Options & Add-Ons

Part NumberDescription
SMF‐DDA55 GALLON DRUM ASSEMBLY WITH SHROUD AND INSTALL KIT
SMF‐SDH1 CU.YD. SELF DUMPING HOPPER WITH CASTERS
SMF‐SDH‐A1 CU.YD. SELF DUMPER HOPPER‐IN LIEU OF DRUM ON INITIAL ORDER
