Wire EDM Filtration

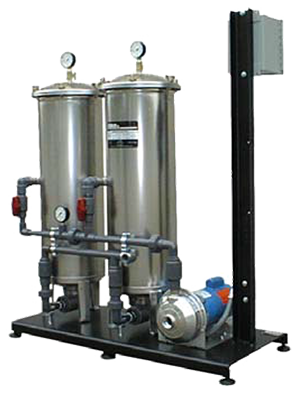

Hurricane Filtration System to Prefilter the OEM Filters
Hurricane Filtration Systems with pump designed to run independent from the machine,These Units can serve as a prefilter to the existing OEM Filters by filtering the dielectric tank while the machine is cutting or by filtering the dirty side of the dielectric tank. This unit can also be installed to replace the existing OEM cartridges by filtering the dirty tank and returning clean fluid to the clean side of the dielectric tank. Each unit is 110 vac/1phase standard with optional voltages available. Each System includes the installation plumbing for the installation desired.
| Model Number | Description |
| WEDM-D-H-P-HOA | Duplex Hurricane System with Pump for Submerged Work Tank |
| WEDM-D-H-P-MS | Duplex Hurricane System with Pump for Dielectric Tank. |
| WEDM-T-H-P-HOA | Triplex Hurricane System with Pump for Submerged Work Tank |
System Options
| Model Number | Description |
| -DI | Stainless Steel 1 cu.ft. DI Resin Vessel Adder |
| -835 | 835 Fiberglass Resin Bottle Adder w/Light |
| -1035 | 1035 Fiberglass Resin Bottle Adder w/Light |
| -OZN | Ozone Generator for bacteria control adder |
| -6C | Set of 6 Dual wheel Casters for Triplex |
