Streamline Hole Driller Filtration

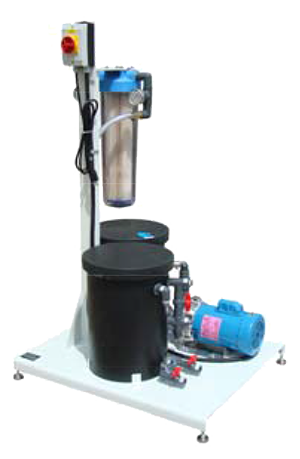

The Ebbco Streamline Hole Driller Filtration System serves as a complete dielectric system for one Small Hole EDM Machine using DI Water or Vitol fluid. Standard system includes a set of ten (10)gallon clean/dirty tanks, stainless steel filter pump, 20” filter housing , an optional 835 fiberglass resin bottle can be added for DI water applications . Each system is preplumbed and mounted on a carbon steel base with standard 110 volt on/off electrical control. Optional digital meter and chiller are available.

Model NumberDescription
SHEDM-HB20-P-TStreamline Hole Driller Filter Unit
SHEDM-HB20-P-T-835Streamline Hole Driller Filter Unit with DI Resin Bole

System Options

Model NumberDescription
EDM-PC-6000IL-1156,000 BTU/HR Inline Chiller 115 vac/1Phase
-CMDigital Conductivity Meter with Probe and Solenoid Valve
-OZNOzone Generator Adder
-3PH3 Phase Electrical Available
