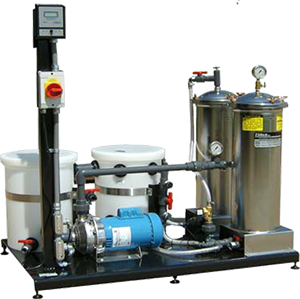

EDM Hole Driller Filtration System
Ebbco Hole Driller Filtration System serves as a complete dielectric system for up to two Small Hole EDM machines for DI or Non-DI Water applications. Standard system includes a set of ten (10) gallon clean/dirty tanks, stainless steel filter pump, Stainless steel filter housing with a 5 Micron Cartridge and optional Stainless Steel ½ cu.ft. DI resin vessel for DI water applications. Sytsems come standard with a 110 volt on/off electrical control. Optional conductivity meter and Inline Chillers are available.
| Model Number | Description |
| SHEDM-924-P-0183 | Hole Driller Filtration System with Stainless Steel Filter Vessel for Non-DI applications |
| SHEDM-924-P-DI-173 | Hole Driller Filtration System with Stainless Steel Filter Vessel for DI water applications |
Above filter system include a 5 Micron filter cartridges unless otherwise stated on purchase order.
System Options
| Model Number | Description |
| EDM-PC-6000IL-115 | 6,000 BTU/HR Inline Chiller 115 vac/1Phase |
| -CM | Digital Conductivity Meter with Probe and Solenoid Valve |
| -OZN | Ozone Generator Adder |
| -3PH | 3 Phase Electrical Available |
